Rich DiFlorio Collection
Colt Ace serial number 6662 - Early Colt Ace pistol in new
in box condition.

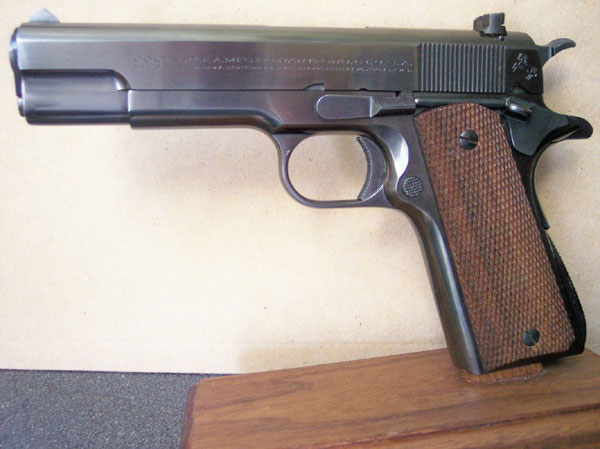

 Left side view.

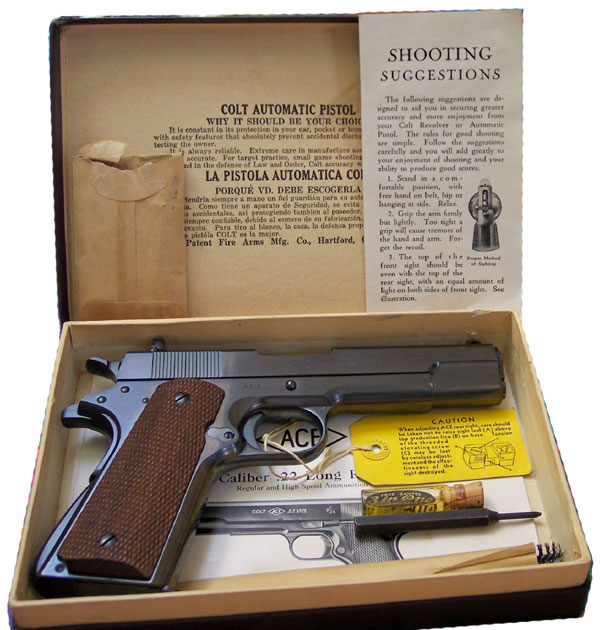

Colt Ace 6662 in original box with all accessories - Instructions, special instructions, yellow sight tag, sight adjustment tool
with original envelope, cleaning brush in original sleeve and 3-in-One oil
sample.

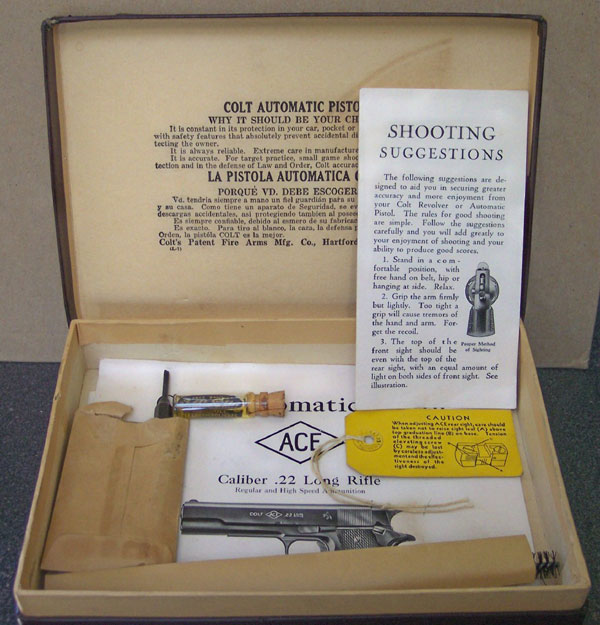

Empty box and all accessories.
Original box.

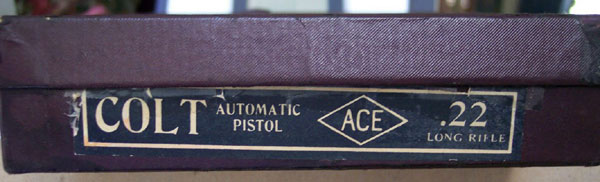

Cotl Ace box end label: Colt Automatic Pistol ACE in a
diamond, .22 Long Rifle.
On original yellow sight tag containing instructions for adjusting the
the Ace sight, the rear of the tag (right image) reads as follows:
"CAUTION - When adjusting Ace rear sight, care should be taken not to raise
sight leaf (A) above top graduation line (B) on base. Tension of the
threaded elevating screw (C) may be lost by careless adjustments and the
effectiveness of the sight destroyed"
Serial number written on the bottom of the box at the
factory.
Rear of slide has serial number 6662 which matches the number on the frame.
 Close-up of hammer from right side.

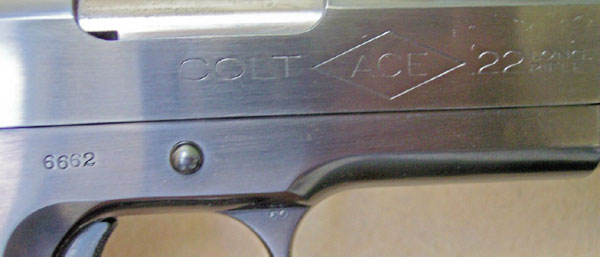

Close-up of right side slide markings and serial number. Cut for
extractor on 6662 is different than on Ace serial number 1711.
 Top of frame near disconnector.
Top view of adjustable rear sight.

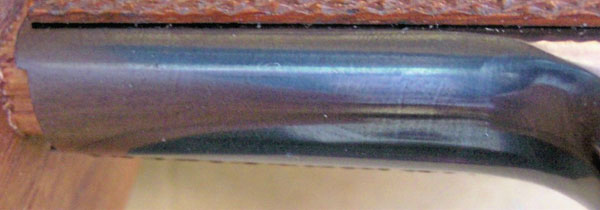

 Front grip strap.
 Original barrel marked COLT ACE 22 MATCH
 Colt Ace slide assembly.
Original two-tone magazine. No hole in top rear of Ace magazine.
Early
two-tone Ace magazines have been observed with a hole.
Base plate of the magazine with COLT over ACE in a diamond over 22 L.R.
 Left side of magazine.
 Label inside lower half of the box.
 Colt Centennial crest on the bottom of the original instruction sheet.

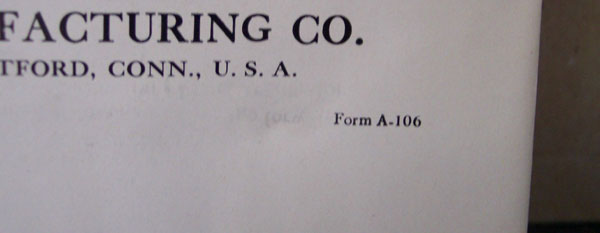

 Ace instruction sheet code Form A-106. |
